Floating Dock for SALE

SUBJECT OF OFFER

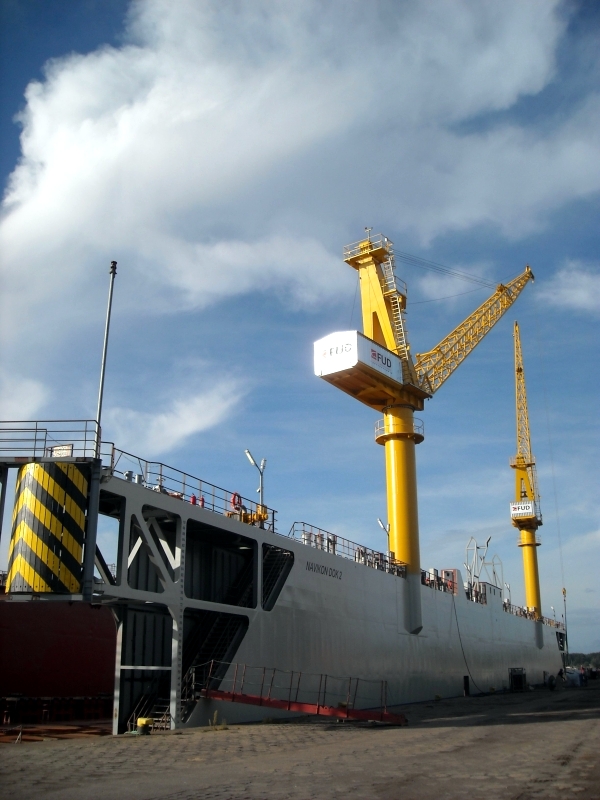

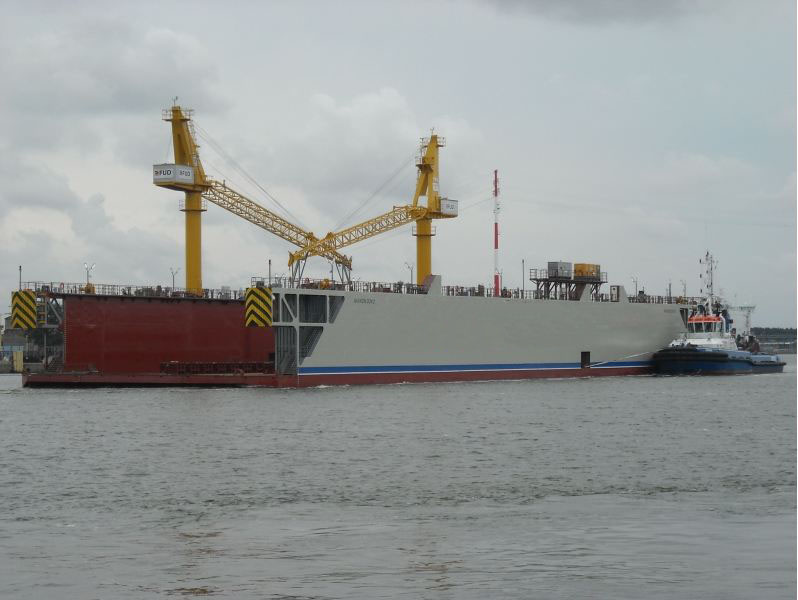

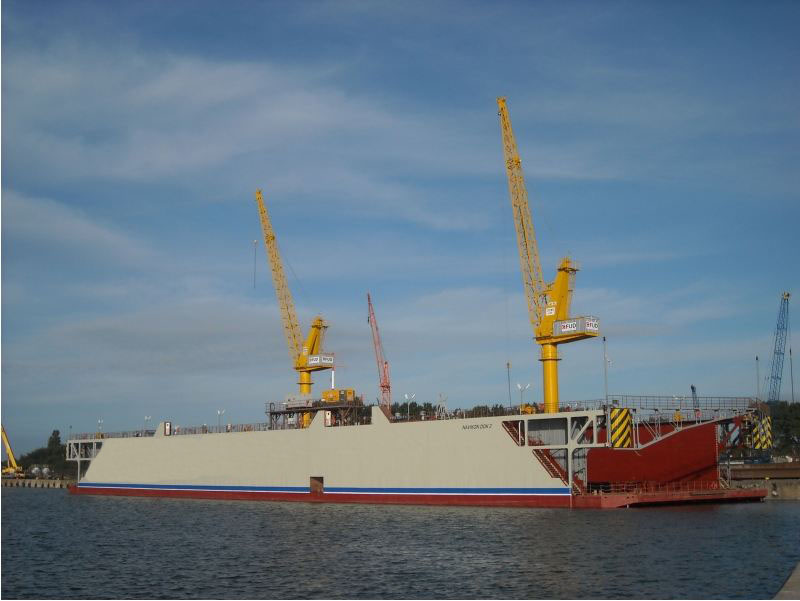

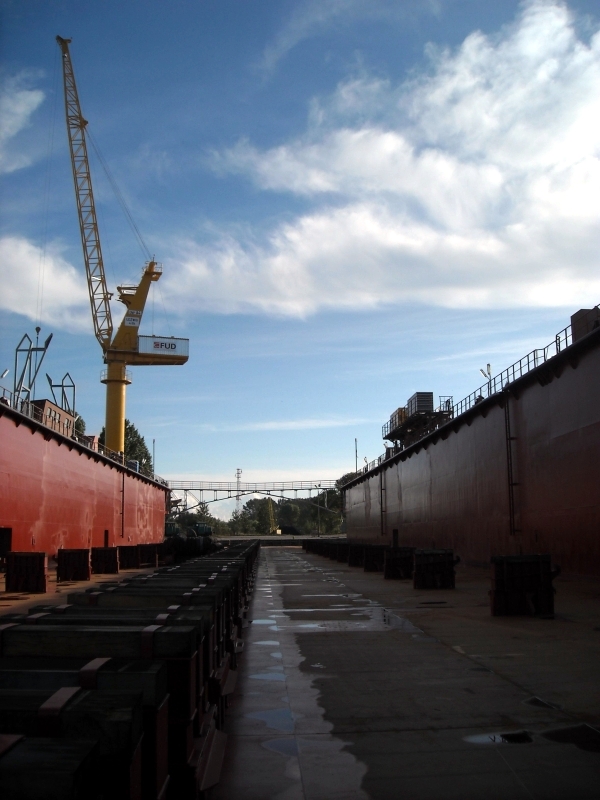

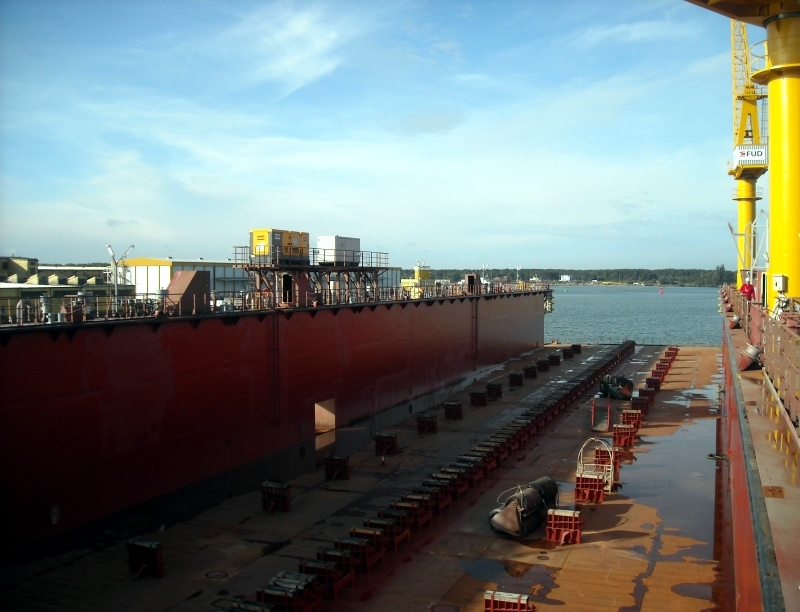

4600 tlc (5000 tlc option) autonomic floating dock with the following principal dimensions:

- Lifting capacity: 4600 t (5000 t option)
- Length over all 123.21 m
- Length of pontoon 110.71 m
- Breadth (moulded) 30.00 m
- Breadth between sidewalls 25,00 m
- Pontoon depth 2.50 m
- Draft above keel blocks 6,00 m + 1,0 m for trimming
- Height of keel blocks 1,20 m
- Design draft 9,68 m

VALUABLES

- ideal for shallow waters - pontoon depth only 2,5 m
- pretty wide inside - 25 m which enables mechanization of work
- Polish product, all materials and equipment European make
- Hempel's guarantee on painting 5 years
- built under IACS class of Polski Rejestr Statkow (PRS)
- equipped with 6x5x1,8 m pit on the keel track for servicing of azimuthal propellers /option/
- two cranes fixed type 5 and 8 Tons
- special winch system for lead ship into the dock reducing number of dockmen
- environmental comply with European requirements
- electrically autonomic - class certified 4 units generator sets Atlascopco QAS 125, each 100 kVA, designed for work in synchronization, managed by PMS.

PRICE

ON REQUEST

CLASSIFICATION:

The dock is classified by Polish Register of Shipping - PRS /IACS member/.

MATERIALS AND EQUIPMENT:

All construction materials and equipment are originated from European Community.

PAINTING SYSTEM:

Complete painting system is delivered by Hempel. Painting work is done under Hempel's supervision.
- ballast tanks: Hempadur Quattro 2x150 um
- above water line: Hempadur Mastic 2x100 um + Hempathane Topcoat 1x50 um
- under water line: Hempadur Quattro 2x150 um

TERMS OF DELIVERY:

The dock will be delivered as it is, ex works /EXW as per Incoterms 2000/, afloat in harbor of Swinoujscie, Poland, after final commissioning, after operational trials, with theoretical calculated stability and with class certificate. CIF terms delivery on request.

PRICES FOR OPTIONAL DELIVERIES:

A pit 6x5x1,8 m on the keel track for servicing of azimuthal propellers, price EUR 100.000,- Lifting capacity increase by 400 tons by additional tanks in platforms, price EUR 100.000,-

DATE OF DELIVERY:

Ready to delivery.

GUARANTEE:

Guarantee on the dock is 12 months from the date of class certificate issue. 5 years Hempel's guarantee on painting system.

VALIDITY OF THE OFFER:

The offer is valid till 31.03.2013

Contact detalis:

LINK, Szymonowica 20, 71-482 Szczecin, Poland
tel: +48 91 462 34 14, fax: +48 91 432 44 31, email: mw@maritime.com.pl
